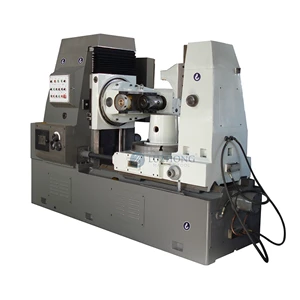

Gear Hobbing Machine / Gear Hobbing Machine

Rp. 123

Last Updated

25 Aug 2023

Minimum Order

1 Unit

Category

MACHINERY AND TOOLS

Subcategory

Metal Machine

Request a Quote

Need a quote, help or product consultation?

Maximum workpiece modulus (Steel / cast iron)	8/10MM
Maximum workpiece diameter (with post-column / no post-column)	620/800MM
Min.machining gears work modul	6
Min.machining dia.	50mm
Max.tool post vertical travel	350 mm
Max. width of teeth	300mm
Max. hob dia/length	180 / 175 mm
Max. hob swiveling angle	±60°
Tool post vertical rapid traverse	0.52m/min
Tool post manually travel per rev	0.754 mm
Vertical feed steps	12
Vertical feed range	0.4~4mm/rev
Spindle taper	MT5
Arbor diameter	22,27,32,40 mm
Tool arbor thread diameter	M16
Max. hob shift axial	55MM
Spindle speed/steps	40~250rpm / 7
Distance from hob axis to worktable surface	240~590mm
Center distance between hob and worktable	50~500 mm
Distance between tailstock end face to worktable surface	400~720 mm
Worktable diameter	625 mm
Worktable bore diameter	Positioning hole 80mm / through hole 105mm
Max.table load	2t
Table rapid traverse	0.55m/min
Table horizontal manual travel per rev	1mm
Worktable Horizontal movement Min.reading	0.01mm
Max.table speed	6.8rpm
Work arbor dia.	35mm
Main motor	5.5kw / 1440rpm
Vertical rapid motor power	0.75kw/1380rpm
Radial rapid motor	0.75kw/1380rpm
Hydraulic pump motor	1.1kw/1000rpm
Coolant pump motor	0.12kw/1000rpm
Total power	8.5 KVA
Net weight	5.5T
Overall dimension	2800×1400×1940mm
