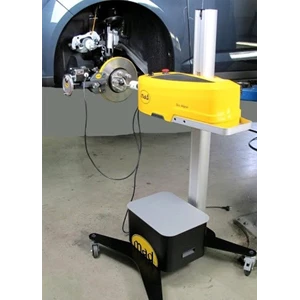

Europe MAD Brake Disc Aligner

Rp. 123

Last Updated

16 Mar 2023

Minimum Order

1 Unit

Specification of Europe MAD Brake Disc Aligner

TECHNICAL SPECIFICATION
Performance specifications
Run-out/Disc oscillation	< 20 μm
Disc Thickness variation	< 20 μm
Surface roughness/finish	< 2 μm
Max. brake disc thickness	41 mm
Max. depth of cut	0,8 mm pro bit
Incremental cutting scale	0.05 mm. per click
Disc Lathe DL2002
Autofeed 1	6 mm/min.
Autofeed 2	12 mm/min.
< >	50 mm/min
<< >>	475 mm/min.
Drive Unit DU2010
Rotation speed	80 - 160 rpm
Working height DA2002	450 - 1250 mm
Electrical Data	DL2002	DU2010
Voltage	36 VDC	100-240V. Freq. 50/60 Hz.
Current	max. 1.3 A	2,4 / 3 A
Power	70 W	0,55 kW
Torque		65 Nm
Weight	7,5 kg	60 kg
Colours	Black RAL 9005/Yellow RAL 1003
